Jauns John Deere 1510G forvarders

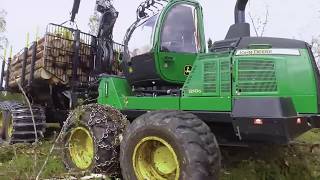

Forwarder John Deere 1510G ( Long Load Space- 5 700 mm)

LOAD RATING:
15 tons

ENGINE:
John Deere 6068HTJ98
6.8L displacement
6 cylinders
Max. 164 kW Gross @1,700-1,900 rpm Max. Torque 978 Nm @1,200-1,500 rpm
Meets EPA and CARB Emission
Non-Road Regulations- Stage V / Final Tier 4 Turbocharged, Charge Air Cooled
Antifreeze (protection to -37С)
Automatic Hydraulic Reversing Fan
Air Filter, Dry Type with Safety Element
Electric Fuel Shut-Off with start switch Key
Engine Oil Drain House
Blower Type Cooling Fan, Enclosed with Guard
Fuel Tank Capacity 167 l.
DEF Tank Capacity 12 l. Transmission and Hydraulic Oil Cooler
Perforated Hood and Side Shields
Adaptive Driveline Control (ADC) for better driving performance, reduce fuel
consumption and increase productivity

ELECTRICAL:
24 Volts
Maintenance 360 Minute Reserve Battery Disconnect, in
Load Center Electrical System with Blade Type Fuses
TRANSMISSION:
Hydrostatic- mechanical, 2 High and low speed gearbox
Tractive force 185 kN
Travel speed, gear1: 0-7,5 km/h Travel speed, gear2: 0-23 km/h

STEERING:
Proportional frame steering with mini levers Turning angle: +- 42 degree
AXLES:
Heavy-duty balanced- Gear bogie axles Hydromechanical Differential Lock at the front and
rear
BRAKES:
Service brakes:
Hidraulically actuated, multi-discs Parking and emergemcy brakes Spring Applied,
Hydraulically Released
Frame Oscillation Brake
Frame brake is automated

TIRES:
Front tires: Nokian 710x26,5 Forest King TRS2 (2956 mm)
Rear tires: Nokian 710x26,5 Forest King TRS2 (2956 mm)
HYDRAULIC SYSTEM:
Load sensing, Power adjustable Pump capacity: 180 sm3
Operating pressure: 24 MPa Hydraulic Tank: 161 liters

BOOM
Model: CF7 - XE 8,5m Reach, 380 Degree Rotation
Max Reach Length: 8,5m
Lifting torque: 125 KNm
Mini-Lever Steering and Boom Controls
Smooth Boom Control (SBC)

LOAD SPACE
Long Load Space- 5 700 mm
